Plunger Pump

Technical Brochure

VPL-01 VPL-02 VPL-03 VPL-04





Type : Plunger Metering Pump









FLOW RATE
  • Flow rate - 0 to 7000 LPH, Higher capacity can be achieved by multiplexing head.



PRESSURE RANGE
  • Stainless steel head standard pressure up to 300 kg/cm2.Special head up to 1000kg/cm2.



FEATURES
  • Heavy duty construction designed for several industrial environment.
  • High volumetric efficiency.
  • High metering accuracy.
  • Automatic capacity control via pneumatic or electric signal on demand or through VFD (Variable Frequency Drive).
  • Low investment cost.
  • Internal worm reduction gear.
  • Oil bath lubrication for long life.
  • Micrometric stroke adjustment while pump running or stopped.
  • It requires low NPSH.
  • Steady state metering accuracy (+ - 1%) of pump output.

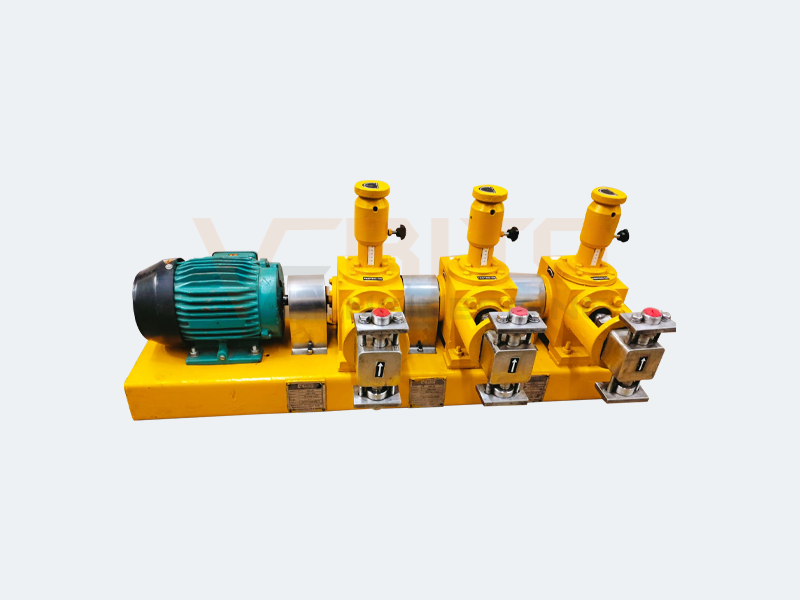

  • Simple & multiplex arrangement of pumps.



TECHNICAL SPECIFICATION
No Pump Model Capacity(L.P.H.) Max Pressure
1 VPL - O1 0 to 152 80
2 VPL - O2 0 to 761 99
3 VPL - O3 3 to 3000 230
4 VPL - O4 0 to 7000 400
