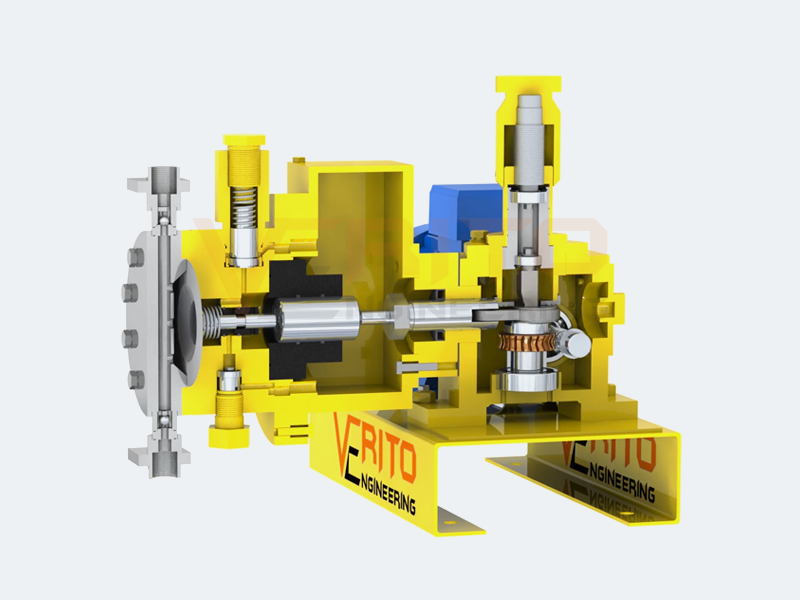

Hydraulically Operated Diaphragm Pump

Technical Brochure

VHYD-01 VHYD-02 VHYD-03 VHYD-04





Type : Hydraulic Diaphragm Type Metering Pump.









FLOW RATE
  • 0 to 7,000 litres per hour. Higher capacity can be achieved by multiplexing head.



PRESSURE RANGE
  • Stainless steel head standard pressure up to 300 kg/cm2. Special head up to 1000kg/cm2.



FEATURES
  • Leak free design.
  • All moving parts including plunger is running in oil.
  • Diaphragm rupture detection system available.
  • High metering accuracy.
  • In built pressure relief valve in hydraulic circuit.
  • Diaphragm life more than 20000 working hours.

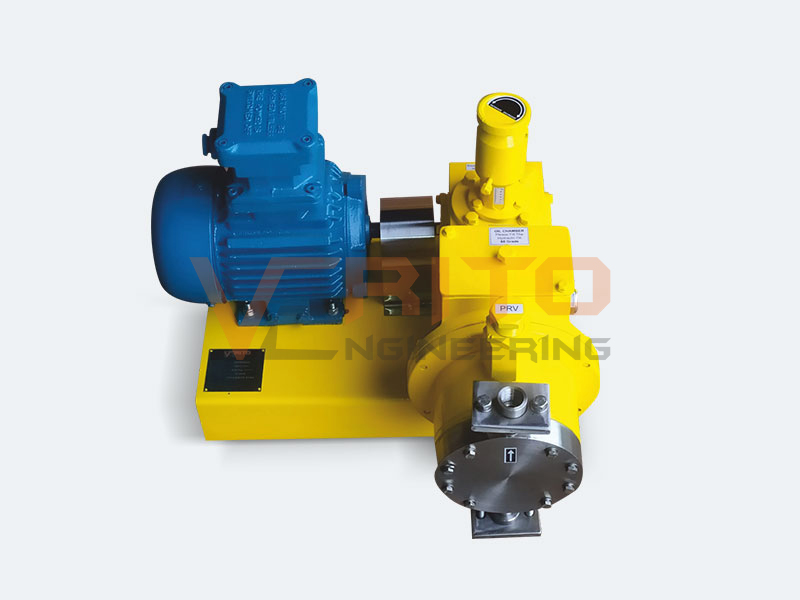

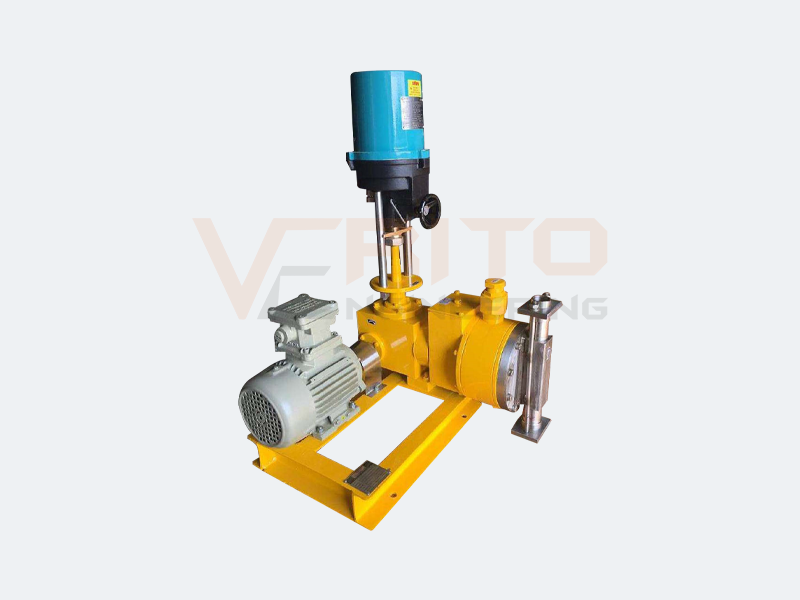

  • Automatic capacity control via pneumatic or electric signal on demand
  • Steady state metering accuracy (+ - 1%) of pump output.



APPLICATION

Versatile and suitable for any liquid including toxic and hazardous.

  • Simplex Hydraulic Diaphragm Pumps
  • Double Hydraulic Diaphragm Pumps

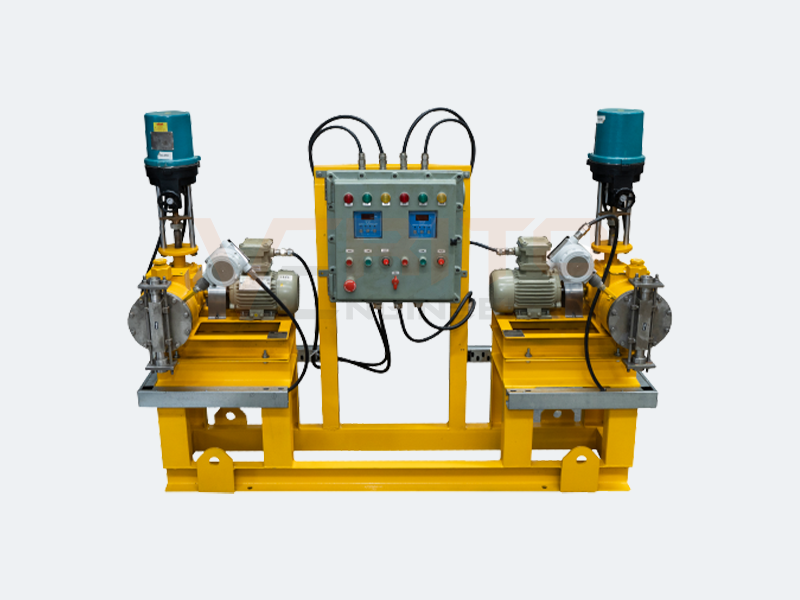

  • Duplex Hydraulic Diaphragm Pumps



Technical Specification
No Pump Model Capacity(L.P.H.) Max Pressure
1 VHYD - O1 0 to 152 80
2 VHYD - O2 0 to 761 99
3 VHYD - O3 0 to 3000 250
4 VHYD - O4 0 to 6000 300



Video

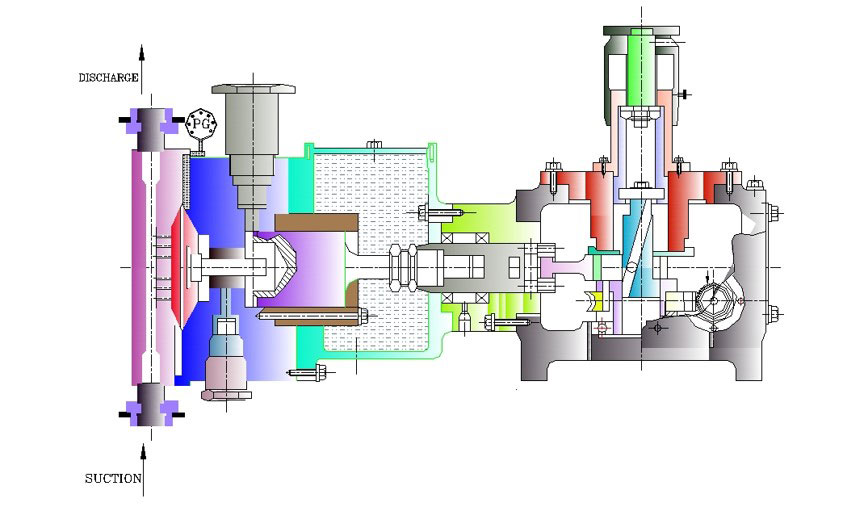

Technical Drawing



Dosing Pump Installation Layout
