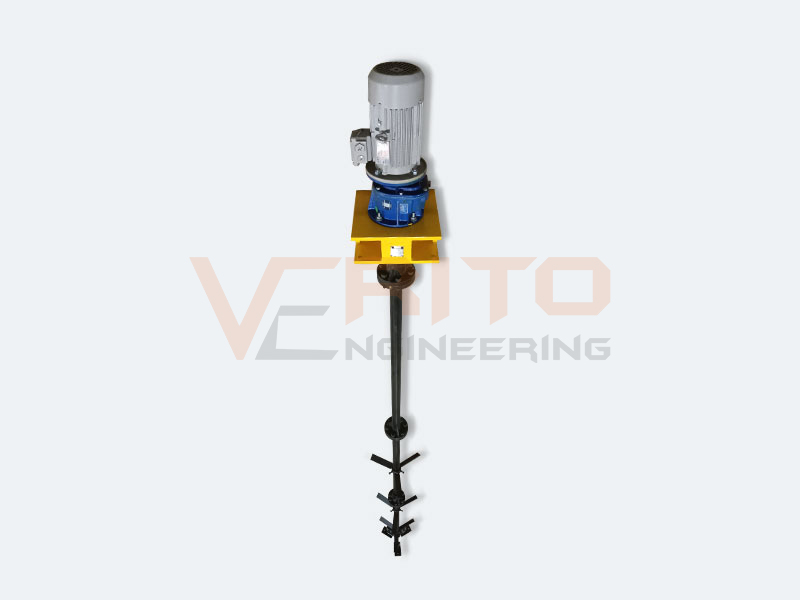

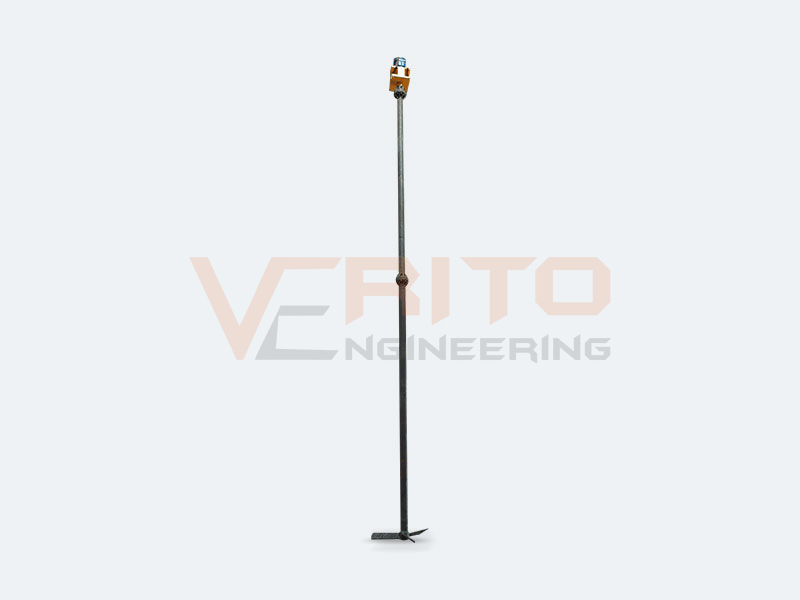

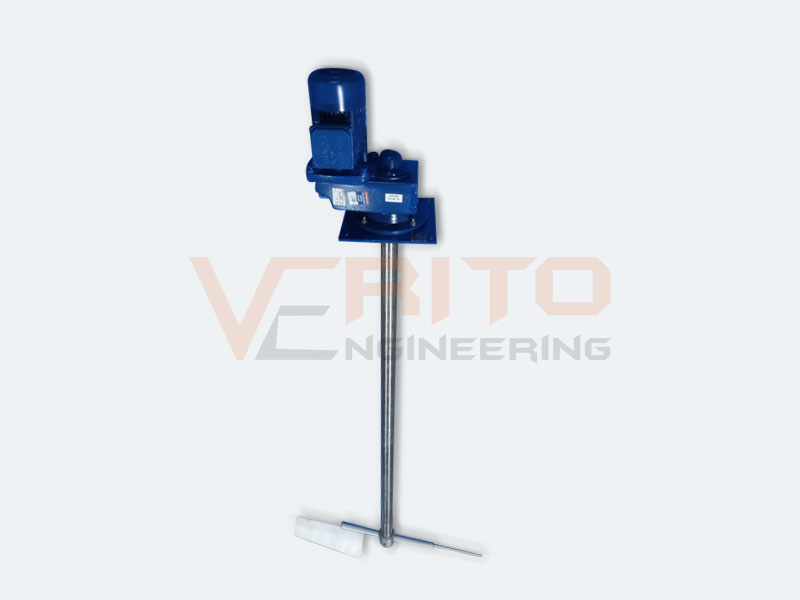

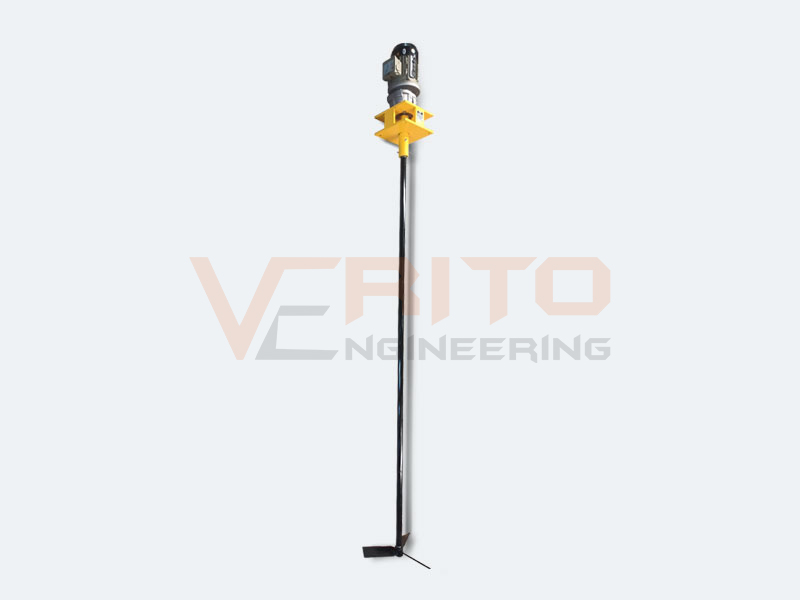

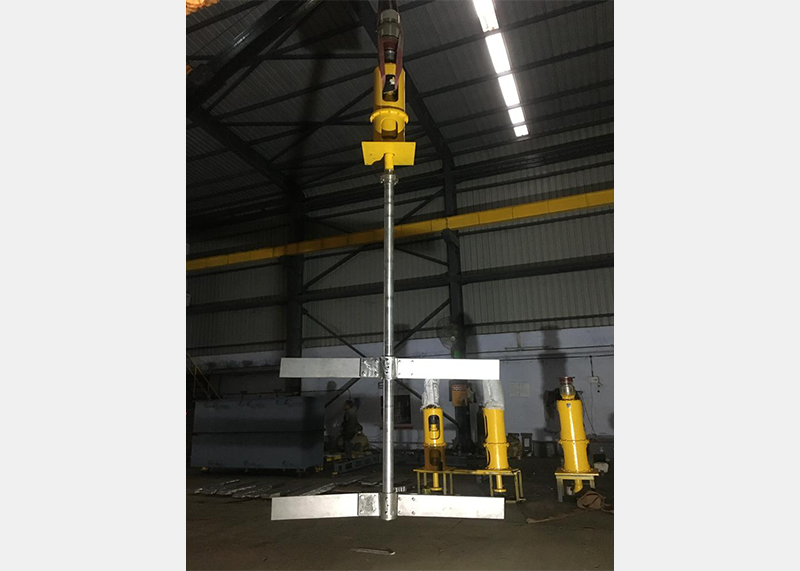

Heavy Duty Agitators

Heavy Duty Agitators are designed for large volume Vessels which are reliable for most demanding heavy industrial applications, from pharmaceutical fermentation, hydrogenation, bio digesters, chemical reactors, resins, large-scale chemical processing to minerals processing and heavy sludge waste treatment.

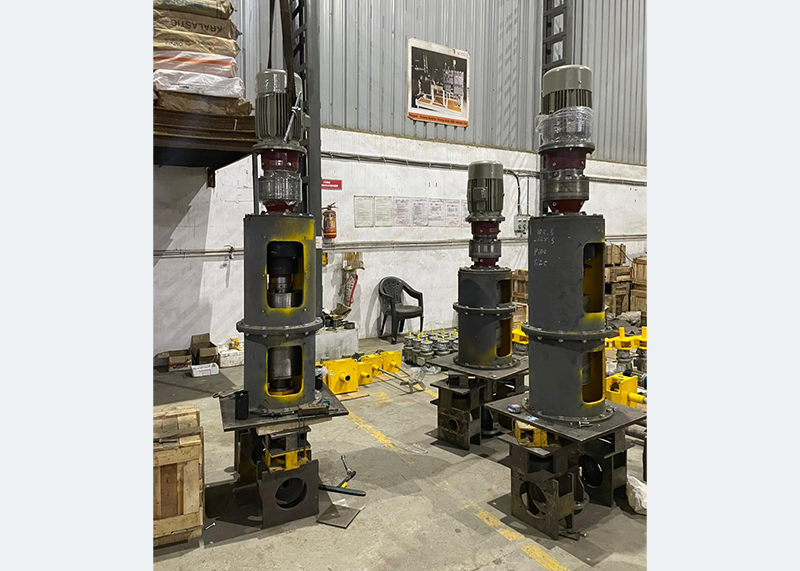

Radial and axial loads on the drive are completely absorbed by a separate double bearing section and the flexible coupling connecting the mixer shaft to the drive. These Heavy Duty Industrial mixer has a rigid torsion-free Bearing housing.



This robust construction and the precision of its running characteristics guarantee the durability of the shaft.









Key Technical Parameters



Motor Power 1.5-100 kW
Shaft Diameter 30-300 mm
Operating Pressure Vacuum – 200 bar
Impeller Type High Efficiency Impeller, Propeller, Hydrofoil, Alpha impeller
Materials (Wetted Parts) SS316, SS316L, CS, Nickel Base Alloy, Duplex & Super Duplex Steel, Titanium Alloy



Feature



  • Robust designs of lantern support available capable of handling high torque and heavy loads.
  • Compliance with international quality, safety, and performance standards and regulations.
  • Designed to handle heavy loads and challenging mixing conditions.
  • Utilizes durable thrust bearings for smooth and stable operation.
  • Offers a range of impeller types and sizes for optimal mixing performance.
  • Impeller blade designed with fluid dynamics simulated for efficient and effective agitation.
  • Designed with user-friendly features for quick and hassle-free installation.
  • Minimal maintenance requirements for reduced downtime and increased productivity.

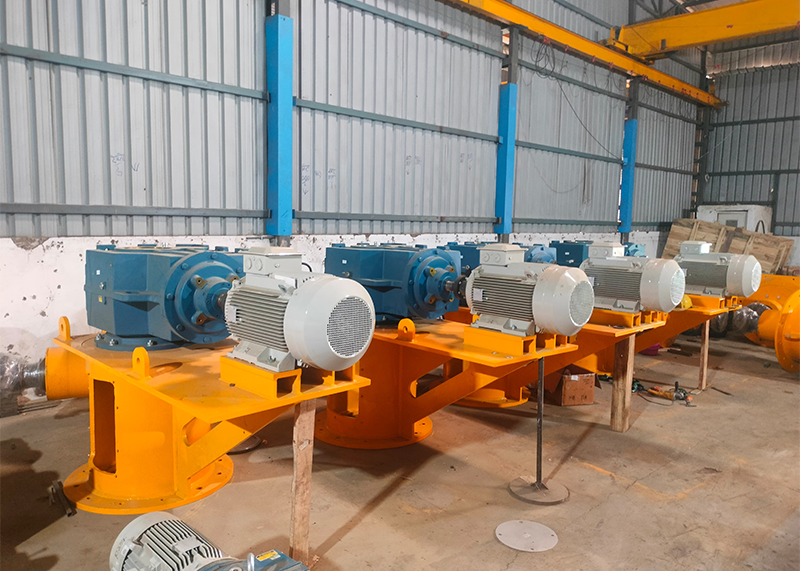

  • Available with different types of gearbox (Inline Helical, Planetary, Bevel).
  • Noise and vibration reduction design for a quieter and smoother operation.



Applications



Chemical Processing

  • Industrial heavy-duty agitators are commonly used in chemical processing plants for large-scale mixing, blending, and reaction processes.
  • They facilitate efficient heat and mass transfer, ensuring uniform distribution of reactants and high product quality.

Mining and Minerals Processing

  • Industrial heavy-duty agitators are utilized in the mining and minerals processing industry for various operations.
  • They aid in the mixing of reagents, flotation processes, and facilitating efficient extraction of minerals.

Pulp and Paper

  • Industrial heavy-duty agitators find applications in the pulp and paper industry for processes like pulp mixing, bleaching, and chemical treatment.
  • They ensure proper dispersion and blending of chemicals for consistent product quality.

Pharmaceutical Manufacturing

  • Industrial heavy-duty agitators are utilized in pharmaceutical manufacturing plants for large-scale mixing and blending of ingredients.
  • They ensure consistent distribution of APIs, excipients, and additives for pharmaceutical formulations.

Paints, Coatings, and Adhesives

  • Industrial heavy-duty agitators are used in the production of paints, coatings, and adhesives.
  • They aid in achieving proper dispersion and homogenization of pigments, resins, and additives

Petrochemical and Refining

  • Heavy-duty agitators find applications in the petrochemical and refining industries for processes such as blending, emulsification, and dispersion.
  • They assist in mixing and homogenizing petroleum-based products and catalysts.

Water and Wastewater Treatment

  • Heavy-duty agitators are used in water and wastewater treatment plants for processes like flocculation, coagulation, and chemical dosing.
  • They assist in achieving thorough mixing and efficient reactions for effective water treatment.

Food and Beverage Production

  • Heavy-duty agitators are employed in large-scale food and beverage production for processes such as mixing, emulsification, and fermentation.
  • They assist in achieving uniformity in product texture, flavor, and consistency.

Energy and Power Generation

  • Heavy-duty agitators find applications in energy and power generation industries, such as nuclear and thermal power plants.
  • They assist in processes like fuel blending, slurry mixing, and cooling system operations.

Waste and Biogas Management

  • Heavy-duty agitators are employed in waste and biogas management facilities for mixing, agitation, and fermentation processes.
  • They assist in promoting the breakdown of organic matter and efficient biogas production.
CFD in Mixing Technology
What is CFD ?



  • Computational Fluid Dynamics (CFD) represents an approved approach within the realm of fluid mechanics. Its widespread application is evident in industries such as automotive, aircraft, process, and mixing.
  • The primary objective of CFD is to address fluid flow-related inquiries by leveraging numerical techniques. The governing equations typically revolve around principles like Navier-Stokes, Euler, or potential-based equations.



Flow Simulation at Verito



  • Verito leverages cutting-edge Computational Fluid Dynamics (CFD) technology, alongside laboratory experiments and field trials, to design, scale-up, enhance, or modernize agitators and mixing systems.

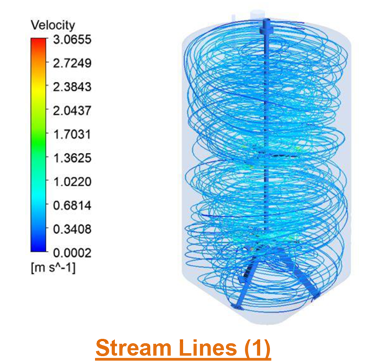

  • Verito’s engineers utilize CFD technology to gain an in-depth understanding of velocity distribution, flow patterns, areas with low velocity (referred to as dead zones, as illustrated in Figures 1, 2 & 3), as well as regions with both low and high shear rates within various mixing system configurations.
  • This enables the testing of multiple system setups and tank agitator designs to achieve optimal performance. Additionally, CFD technology aids Verito in fine-tuning impeller blade designs to strike a balance between power requirements and pumping capacity.



Key Outcomes of CFD-Studies



  • In-depth Information of Flow pattern
  • Areas with the potential of low mixing intensity can be pinpointed and rectified.
  • Availability of crucial process parameters like shear and energy dissipation
  • Evaluation of different design options
  • Shortened project timelines for complex process mixing systems
  • Mitigation of project risks
